Angular VS React: Performance comparison with Google Web Vitals
Software Developers/ Technical Managers who want to compare performance metrics of Angular and React to get better perspective about which one of these is more suitable for an upcoming project.
This post is going to compare the performance difference between React and Angular in terms of:
1) App bundle size (JS files only) 2) Heap size 3) DOM nodes 4) DOM Content Loaded (DCL) 5) First Contentful Paint (FCP) 6) Largest Contentful Paint (LCP) 7) Time To Interactive (TTI) 8) Scripting time 9) Rendering time
We will be comparing the data from Performance, Memory, Lighthouse, Performance insights (its still a preview feature) and Network tab of Chrome Devtools for a simple application (Contact manager) created in both React (v18.2.0) and Angular (v14.2.6).
Contact Manager Application
Preview Contact Manager application
We are going to create Contact manager application in both React and Angular. Angular application was created using Angular CLI and React application using Create React App (CRA). The application will have some contacts by default and will have option to increase number of contacts, to allow you to compare these with different number nodes. There is option to provide a query parameter in the URL, no_of_contacts so that we can dynamically provide the number of contacts to be generated. In this article, we will be looking at performance results for 1,000 contacts.
If you would like to check the application’s performance for a different set of contact number, the applications can be accessed by the URL provided or cloned from Github repo link provided at bottom of article.
NOTE: I have tried to list most accurate readings but there are factors like latency and caching etc which could have affected them.
Table of readings (For 1,000 Contacts)
Hosting: Github pages
Angular stack: Angular v14.2.6 with default packages.
React stack: React (v18.2), react-router-dom, Typescript.
Lets dive in and see how the above reading were taken and how they contribute in enhancing the performance of our application.
1) Application Bundle Size
Application size decides the download time of the files by the browser and plays an important role, specially when the application size is very big or our target audience may be using slow internet connection. The pictures below are of the tab of chrome dev tools and the application size shown in the above table has been calculated by adding the JS file size. The file size can also be checked from the lighthouse report.
1.1 Angular Contact manager network tab

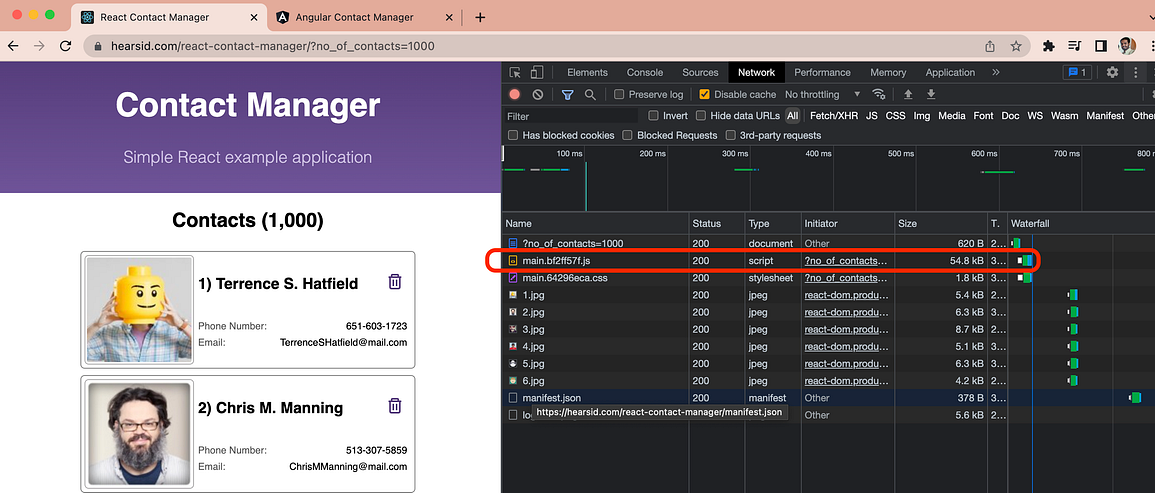

1.2 React Contact manager network tab
2) Heap size
2.1 Angular app heap snapshot
2.2 React app heap snapshot
3) DOM nodes
This is crucial since a template parser’s internal compilation of the templates may result in the insertion of a few extra DOM nodes. Lesser the node elements, lighter the DOM tree, the better it is. But in our case the number of DOM nodes are same for Angular and React.
4) DCL- DOM Content Loaded
When the HTML document has been fully parsed and all deferred scripts have downloaded and run, the DOMContentLoaded event is fired. It doesn’t wait for other elements like as async scripts, subframes and pictures to finish loading. In the below screenshot and for comparison best of 3 readings been taken. We can take readings for these Web vitals from Performance and Lighthouse tab as well. The application looks like this or with less styling after DOM Content Loaded event.
4.1 Application after DCL
4.2 Angular app DCL, FCP, TTI, LCP
4.3 React app DCL, FCP, TTI, LCP
5) FCP- First Contentful Paint
First Contentful Paint (FCP) is when the browser renders the first bit of content from the DOM, providing the first feedback to the user that the page is actually loading. The appliation should looks like this after FCP.
5.1 Application after FCP
6) LCP- Largest Contentful Paint
LCP measures the time from when the user initiates loading the page until the largest image or text block is rendered within the viewport.
7) TTI- Time To Interactive
The TTI metric measures the time from when the page starts loading to when its main sub-resources have loaded and it is capable of reliably responding to user input quickly. Our application should be completely loaded after this.
8) Scripting time
How much of the total time was spent in scripting phase by the framework. There is significant difference in this for Angular and React,
4.1 Angular app Performance app
4.2 React app Performance tab
9) Rendering Time
How much of the total time was spent in the rendering phase by the frameworks.
10) Onload event
The load event is fired when the whole page has loaded, including all dependent resources such as stylesheets and images. This is in contrast to DOM Content Loaded event, which is fired as soon as the page DOM has been loaded, without waiting for resources to finish loading.
